1.0.3
Average print time: 2 hours

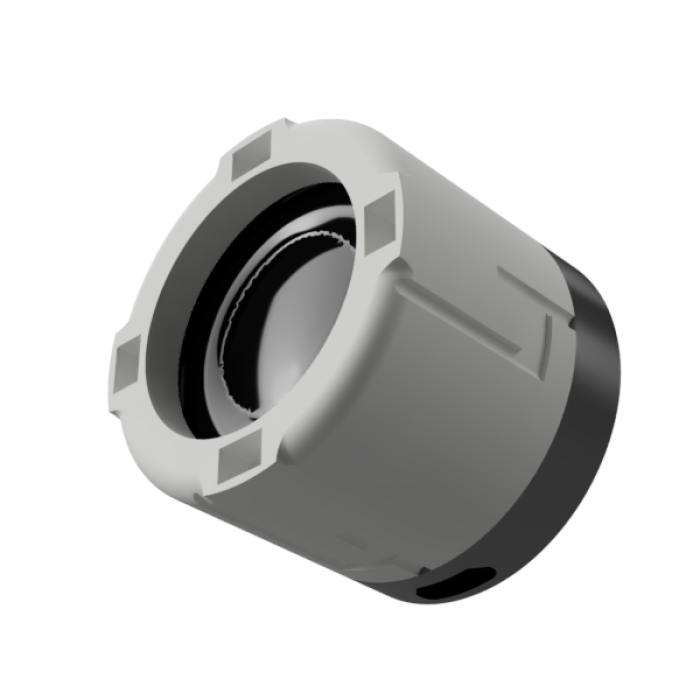

Speaker 2.0
Unlock with PatreonShare this model
Required
This shell require Ghost 2.0 core. If you already print it, skip this warning.
Pre-supported files
The pre-supported files are intended as a quick guide to help you to print the files, the pre-supported files are named like pre_[printer]_[name] for example: pre_sla_PSG-001.stl
Files to printed
This list show the name of each file inside the zipped document, and how many times each one of them should be printed.
PMS2-001.stl
Parts to be printed 1
PMS2-002.stl
Parts to be printed 1
PMS2-003.stl
Parts to be printed 1
PMS2-004.stl
Parts to be printed 1
PMS2-003-USB_C.stl
Parts to be printed 1
This module require 4 SMD LED PLCC-2 3528, 1 momoho BTS0011 speaker to make it work and some 30AWG wire or any other thin wire you have at hand, I put the store links on this post, gain you are free to get this from your local store.
Also if you’re going to print the Ghost 2.0 PCG2-003.stl in white, you can buy any blue LED, and if you print that part on blue, you need a white LED.
| Quantity | Description | Price | Link* |
|---|---|---|---|
| 1 | The Smallest Mini Bluetooth Speaker – Momoho BTS0011 Wireless Small Bluetooth | US $20.97 | eBay |
| 1 | The Smallest Mini Bluetooth Speaker – Momoho BTS0011 Wireless Small Bluetooth Speaker,Portable Speakers for Home/Outdoor/Travel,Rechargeable,Compatible with iPhone Samsung (Black) | US$12.99 | Amazon |
| 20 | 20x SMD LED PLCC-2 3528 1210 warm white – weiß – blau – rot – grün – gelb- amber | 3.00 EUR | eBay |
| 20 | 20 SMD LED PLCC-2 Grün, grüne LEDs SMDs 3528 green vert groene verde groen SMT | 4.29 EUR | eBay |
| 10 | 10 x LED PLCC2 1210 3528 Cool Clear White SMD LEDs Super Ultra Bright PLCC-2 | US $7.04 | eBay |
| 1 | Cable de embalaje de prueba de aislamiento color 8-Wire P/N B-30-1000 250M 30AWG Estañado Cobre sólido Cable 280M | US$18.77 | Amazon |
Changelog
1.0.0 (June 9, 2022)
Added
Initial Release
1.0.1
Fixed
Inner space on the speaker body
Changed
design for the front speaker
1.0.2
The speaker body was changed since the previous version was only compatible with SLA printers and was impossible to be printed on FDM printersChanged
Speaker body
1.0.3
This updates add a new cap (PMS2-003-USB_C.stl) to make the model compatible with the cases where the speaker have a charger connection with USB type CAdded
PMS2-003-USB_C.stl
